Polyhedron convex hull generation

[pHySiQuE]

Fast generation of low-poly convex hulls.

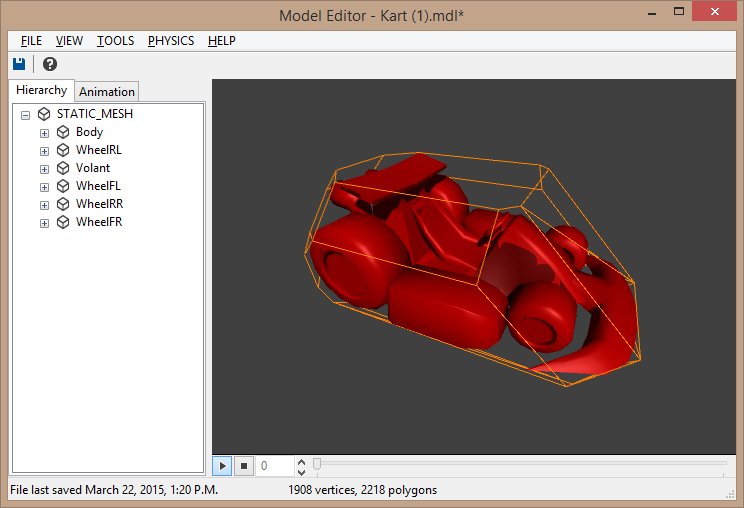

Exact convex hull:

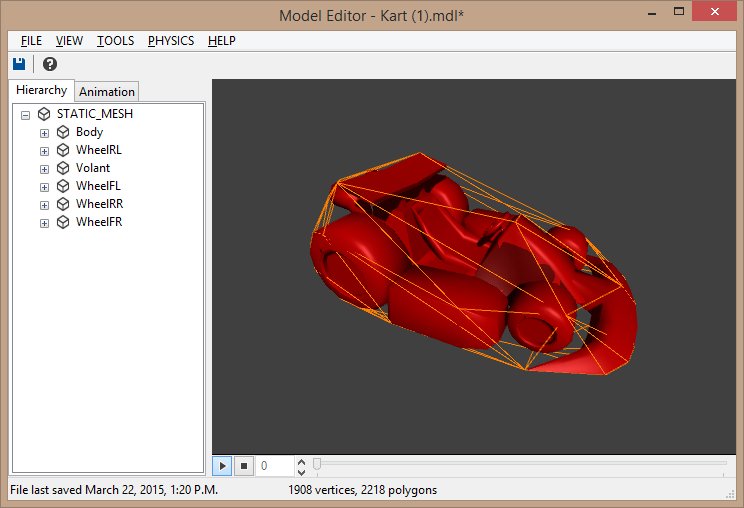

Polyhedron method:


Code: Select all

   Leadwerks::Shape* ShapeShrinkWrap(Leadwerks::Model* model,float* matf)
      {
         Leadwerks::Mat4 mat = Leadwerks::Mat4(matf);
         Leadwerks::Vec3 p;
         Leadwerks::PhysicsDriver* driver = Leadwerks::PhysicsDriver::GetCurrent();
         Leadwerks::Shape* shape = NULL;
         std::vector<Leadwerks::Vec3> points;
         float mindist,d;
         Leadwerks::Surface* hulldata = Leadwerks::Surface::Create();

         //Collect vertices
         for (int i = 0; i < model->CountSurfaces(); i++)
         {
            model->surfaces[i]->Transform(mat);
            for (int v = 0; v < model->surfaces[i]->CountVertices(); v++)
            {
               p = model->surfaces[i]->GetVertexPosition(v);
               points.push_back(p);
            }
         }

         //Create planes
         std::vector < Leadwerks::Plane > planes;

         //Top
         planes.push_back(Leadwerks::Plane(0, 1, 0, 0));

         //Top ring
         planes.push_back(Leadwerks::Plane(-1, 1, 0, 0));
         planes.push_back(Leadwerks::Plane(1, 1, 0, 0));
         planes.push_back(Leadwerks::Plane(0, 1, -1, 0));
         planes.push_back(Leadwerks::Plane(0, 1, 1, 0));
         planes.push_back(Leadwerks::Plane(-1, 1, -1, 0));
         planes.push_back(Leadwerks::Plane(-1, 1, 1, 0));
         planes.push_back(Leadwerks::Plane(1, 1, -1, 0));
         planes.push_back(Leadwerks::Plane(1, 1, 1, 0));

         //Middle ring
         planes.push_back(Leadwerks::Plane(-1, 0, 0, 0));
         planes.push_back(Leadwerks::Plane(1, 0, 0, 0));
         planes.push_back(Leadwerks::Plane(0, 0, -1, 0));
         planes.push_back(Leadwerks::Plane(0, 0, 1, 0));
         planes.push_back(Leadwerks::Plane(-1, 0, -1, 0));
         planes.push_back(Leadwerks::Plane(-1, 0, 1, 0));
         planes.push_back(Leadwerks::Plane(1, 0, -1, 0));
         planes.push_back(Leadwerks::Plane(1, 0, 1, 0));

         //Bottom ring
         planes.push_back(Leadwerks::Plane(-1, -1, 0, 0));
         planes.push_back(Leadwerks::Plane(1, -1, 0, 0));
         planes.push_back(Leadwerks::Plane(0, -1, -1, 0));
         planes.push_back(Leadwerks::Plane(0, -1, 1, 0));
         planes.push_back(Leadwerks::Plane(-1, -1, -1, 0));
         planes.push_back(Leadwerks::Plane(-1, -1, 1, 0));
         planes.push_back(Leadwerks::Plane(1, -1, -1, 0));
         planes.push_back(Leadwerks::Plane(1, -1, 1, 0));

         //Bottom
         planes.push_back(Leadwerks::Plane(0, -1, 0, 0));

         //Adjust planes
         for (int i = 0; i < planes.size(); i++)
         {
            planes[i].Normalize();
            for (int v = 0; v < points.size(); v++)
            {
               d = planes[i].DistanceToPoint(points[v]);
               if (v == 0)
               {
                  mindist = d;
               }
               else
               {
                  mindist = min(mindist, d);
               }
            }
            planes[i].d = mindist;
         }

         //Build shape
         Leadwerks::Vec3 na, nb, nc;
         for (int a = 0; a < planes.size(); a++)
         {
            na = planes[a].GetNormal();
            for (int b = 0; b < planes.size(); b++)
            {
               if (b != a)
               {
                  nb = planes[b].GetNormal();
                  for (int c = 0; c < planes.size(); c++)
                  {
                     if (c != a && c != b)
                     {
                        nc = planes[c].GetNormal();
                        if( planes[a].IntersectsPlanes(planes[b], planes[c],p))
                        {
                           bool ok = true;
                           for (int n = 0; n < planes.size(); n++)
                           {
                              if (n != a && n != b && n != c)
                              {
                                 if (planes[n].DistanceToPoint(p) > 0.0)
                                 {
                                    ok = false;
                                    exit;
                                 }
                              }
                           }
                           if (ok) hulldata->AddVertex(-p);
                        }
                     }
                  }
               }
            }
         }
         if (hulldata->CountVertices() < 4)
         {
            hulldata->Release();
            return NULL;
         }
         shape = Leadwerks::Shape::ConvexHull(hulldata);
         hulldata->Release();
         return shape;
      }


[Julio Jerez]

Is that a question?

Yes that method of building convex hull for a set of plane equations is one of the older algorithm.
I think is was the algothithm uses by engine like quake and unreal for building brushes.

The problem is that is it no good a t all, it is actually one of eth worse method because it realize of the accuracy of the calculation of the intersection [point of thread or more plane equations, which very numerically unstable.

You image show a useful conversion, but that because ether planes happen to intersect and very well defined point, the moment the intersection point start to be close three result in far form a convex mesh.

the second problem is that it is no fast at all, I tis in fact the slowest known method,
the outer loop are three nested iterations over set of planes, that's cubic time complexity, which is probably the worse thong you want in an algorithm.
You test is fast because the number of plane is small, if you double the input planes it will take 8 time more time.
This is like saying a bubble sort is faster that a quick sort because the inner loop is faster, which is true as long as you data set is small.

The third problems is that, the method build the convex hull of a set of a set of planes, not the best fitting convex hull.

if you want a robust convex hull generation for you Tool you can use
http://code.google.com/p/juliohull/

This is my won version of the Best know algorithm for generation convex hull on any dimensions.
It is the same used in Newton, but this one was made standalone by the people at Nvidia.

That algothim has the property that if you pass the Max point count for you hull the construction time is constant. and it will always build the best fitting Hull.
